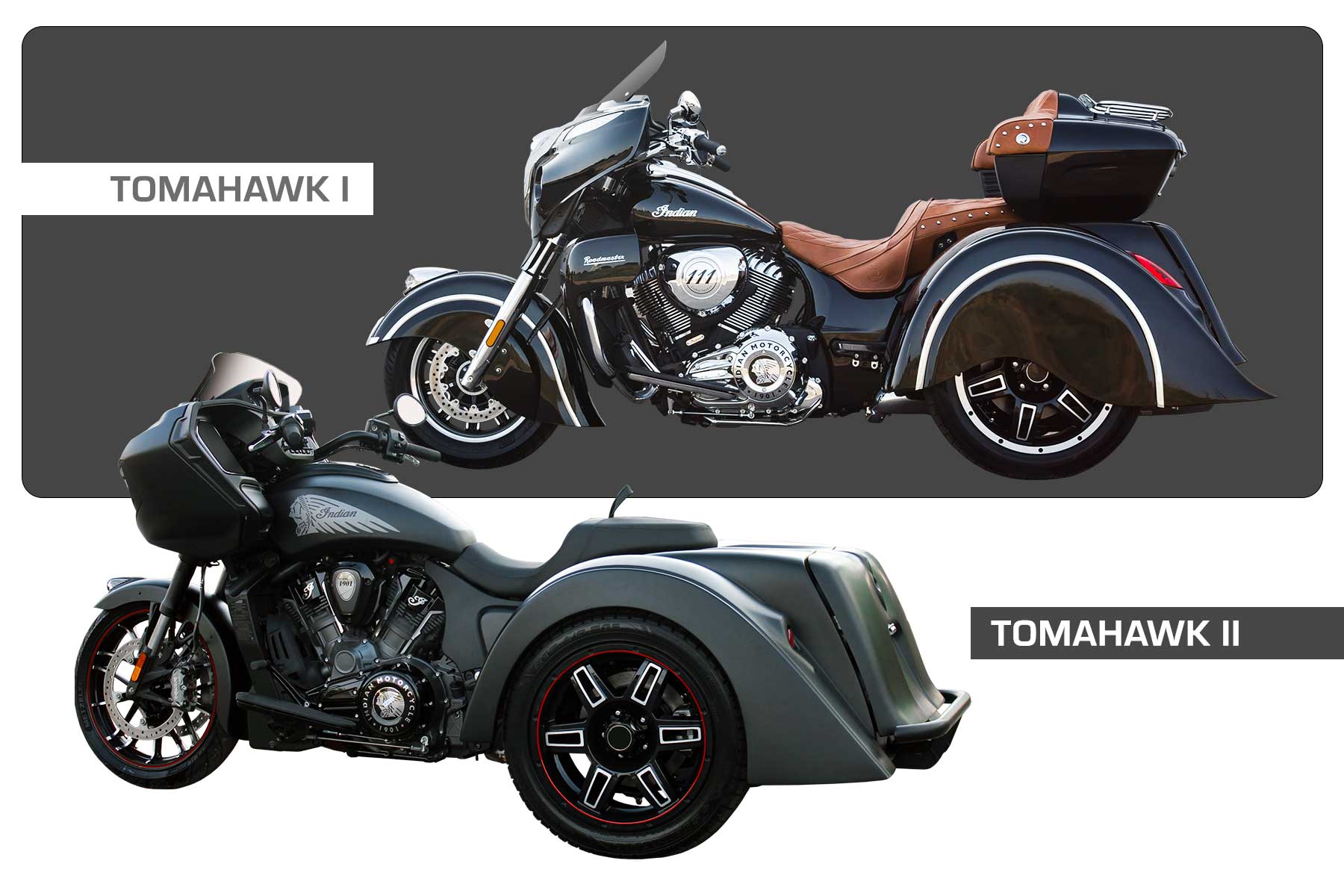

Tomahawk II Independent Rear Suspension
Tomahawk II: Chieftain (2019 & up), Roadmaster (only Dark Horse/Limited/Elite), Challenger & Pursuit (2020 & up)
Standard Features
- IRS (Independent Rear Suspension) with over 4″ Suspension Travel
- Vintage-Inspired Fiberglass Body
- Torque Thrust Polished Aluminum Wheels
- On-Board Air Compressor
- LED Air Suspension & Voltmeter Readout
- Patented Air Ride Suspension
- Integrated Disc Brake System
- ABS Integration Kit
- Trunk Door Designed with Hidden External Hinges
- 12 Volt Power Outlet in Trunk
- Trike Trunk Utilizes Ignition Key
- Integrated Electronic Trunk Lock on Key Fob & Gas Tank
- Trunk Door-Mounted Light to Conveniently Shine onto Cargo
- Motor Trike 3-Year/60,000 Mile Factory Warranty
Available Options
- Wheel Upgrades
- Fender Bras with Optional Embroidery
- Front End Rake Kit—Challenger, Pursuit 6.5°; Chief, Chieftain, Roadmaster 5.5°(Do I need a rake kit?)
- Electric Reverse Kit
- Parking Brake Kit
- Trailer with Complementary Styling
- Trailer Hitch Assembly
- Trailer Wiring Harness with 6 Pin Connector
- Chrome Bumper
- Black Bumper
- Trunk Carpet
- Trike Cover
- Color-Match Paint
- Custom/Multi-tone Paint
Independent Rear Suspension
Motor Trike offers an Independent Rear Suspension for most of our conversions. This makes for a great ride by allowing each wheel on the same axle to move independently of each other, creating a smooth ride.
But we didn’t stop there. We designed and patented an air ride suspension that offers over four inches of wheel travel. We also lowered the spring rate to create a more comfortable ride with plenty of “give” when traveling over bumpy terrain, with an extra passenger, heavy cargo, or pulling a trailer. You get optimum ride quality thanks to the fingertip-adjustable air ride suspension and softened spring rate.
Motor Trike also uses rubber bushings on all suspension components as well as on the differentials to reduce the noise, vibration, and harshness that can be bothersome to riders. Additionally, the roll center height has been lowered ensuring both tires are kept in contact with the road at all times which helps to prevent rolling. And finally, Motor Trike uses a calibrated sway bar to ensure comfortable and secure cornering.
With all of these preventative measures in place, the inconsistencies in the road are completely absorbed to deliver an effortless ride.
Specifications
| Overall Width | 55″ |
|---|---|
| Wheelbase Length | 65.7″ |
| Overall Length | 110″ |
| Weight | 1,243 lbs |
| Storage | 5.0 cubic ft |
| Suspension Style | Unequal Length Upper and Lower Control Arms |
| Body Material | Polyester Resin Fiberglass |
| Drive System | Belt Drive |
Factory TPMS systems are not compatible with trike conversion kits at this time.
5 Trike Shopping Must-Haves
Are you ready to trike your bike or swing for a full turkey unit? Find out what you know what to look for here. →
- All Motor Trike conversions include a patented air ride suspension, rear tires and wheels, interior trunk light, and a 3-year/60,000 mile warranty.
- *Pricing subject to change without notice and does not include installation or shipping. Several different options are available for an upgraded price.
- **Due to incredibly high demand, we are experiencing longer than normal lead times. Please contact Motor Trike/your dealer for details.
